Docker 之 部署RabbitMQ集群并实现Haproxy代理(一)

前言

本小节我们学习一下使用Docker部署RabbitMQ集群。
RabbitMQ Docker Hub

• 目录参考

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1[root@iZ2ze8sm5upgi8z1dcazqeZ rabbitmq]# pwd

2/workspace/rabbitmq

3[root@iZ2ze8sm5upgi8z1dcazqeZ rabbitmq]# tree

4.

5├── config

6│   └── docker-compose.yml

7├── data

8│   ├── rabbitmq1

9│   ├── rabbitmq2

10│   └── rabbitmq3

11└── haproxy-etc

12    └── haproxy.cfg

13

14

15

• 拉取rabbitmq镜像

1
2
3
1docker pull rabbitmq:3.8-rc-management

2

3

若不使用Rabbitmq的management功能，可以拉取镜像：rabbitmq:3.8-rc

• 创建Rabbitmq共享网络

1
2
3
1docker network create rabbitmqnet

2

3

1
2
3
4
5
6
7
8
9
10
11
12
1[root@iZ2ze8sm5upgi8z1dcazqeZ data]# docker network ls

2NETWORK ID          NAME                DRIVER              SCOPE

3203f098f2ed7        bridge              bridge              local

4901ab7f16e18        config_default      bridge              local

5e5878362fd0d        data_default        bridge              local

6e16693f5cfb7        example_default     bridge              local

754da0f7e3311        host                host                local

86ad755fc1934        none                null                local

9a4b8c1129340        rabbitmqnet         bridge              local

10[root@iZ2ze8sm5upgi8z1dcazqeZ data]#

11

12

• 创建节点(三个节点)

注意这里使用相同的 RABBITMQ_ERLANG_COOKIE 值

1


#RabibitMQ Node1
docker run -d
–name=rabbitmq1
-p 5672:5672
-p 15672:15672
-v /workspace/rabbitmq/data/rabbitmq1:/var/lib/rabbitmq:z
-e RABBITMQ_DEFAULT_USER=Dustyone
-e RABBITMQ_DEFAULT_PASS=bai5331359
-e RABBITMQ_NODENAME=rabbitmq1
-e RABBITMQ_ERLANG_COOKIE='Dustyone-Murex-cluster-cookie'
-h rabbitmq1
–net=rabbitmqnet
rabbitmq:3.8-rc-management

#RabibitMQ Node2
docker run -d
–name=rabbitmq2
-p 5673:5672
-p 15673:15672
-v /workspace/rabbitmq/data/rabbitmq2:/var/lib/rabbitmq:z
-e RABBITMQ_DEFAULT_USER=Dustyone
-e RABBITMQ_DEFAULT_PASS=bai5331359
-e RABBITMQ_NODENAME=rabbitmq2
-e RABBITMQ_ERLANG_COOKIE='Dustyone-Murex-cluster-cookie'
-h rabbitmq2
–net=rabbitmqnet
rabbitmq:3.8-rc-management

#RabibitMQ Node3
docker run -d
–name=rabbitmq3
-p 5674:5672
-p 15674:15672
-v /workspace/rabbitmq/data/rabbitmq3:/var/lib/rabbitmq:z
-e RABBITMQ_DEFAULT_USER=Dustyone
-e RABBITMQ_DEFAULT_PASS=bai5331359
-e RABBITMQ_NODENAME=rabbitmq3
-e RABBITMQ_ERLANG_COOKIE='Dustyone-Murex-cluster-cookie'
-h rabbitmq3
–net=rabbitmqnet
rabbitmq:3.8-rc-management

1


1
2
3
4
5
6
7
1   [root@iZ2ze8sm5upgi8z1dcazqeZ rabbitmq]# docker ps -a

2           CONTAINER ID        IMAGE                             COMMAND                  CREATED             STATUS              PORTS                                                                                        NAMES

3           d15e8aecfa21        rabbitmq:3.8-rc-management        "docker-entrypoint.s…"   3 seconds ago       Up 2 seconds        4369/tcp, 5671/tcp, 15671/tcp, 25672/tcp, 0.0.0.0:5674->5672/tcp, 0.0.0.0:15674->15672/tcp   rabbitmq3

4           ac5f2897f6de        rabbitmq:3.8-rc-management        "docker-entrypoint.s…"   9 seconds ago       Up 8 seconds        4369/tcp, 5671/tcp, 15671/tcp, 25672/tcp, 0.0.0.0:5673->5672/tcp, 0.0.0.0:15673->15672/tcp   rabbitmq2

5           5f7e538553cd        rabbitmq:3.8-rc-management        "docker-entrypoint.s…"   16 seconds ago      Up 15 seconds       4369/tcp, 5671/tcp, 0.0.0.0:5672->5672/tcp, 15671/tcp, 25672/tcp, 0.0.0.0:15672->15672/tcp   rabbitmq1

6

7

• 组建rabbitmq集群

登陆Rabbitmq的后两个节点，执行命令加入第一个Rabbitmq节点集群

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1### Disk Node

2# docker exec rabbitmq2 bash -c \

3"rabbitmqctl stop_app && \

4rabbitmqctl reset && \

5rabbitmqctl join_cluster rabbitmq1@rabbitmq1 && \

6rabbitmqctl start_app"

7

8### Ram Node

9# docker exec rabbitmq3 bash -c \

10"rabbitmqctl stop_app && \

11rabbitmqctl reset && \

12rabbitmqctl join_cluster --ram rabbitmq1@rabbitmq1 && \

13rabbitmqctl start_app"

14

15

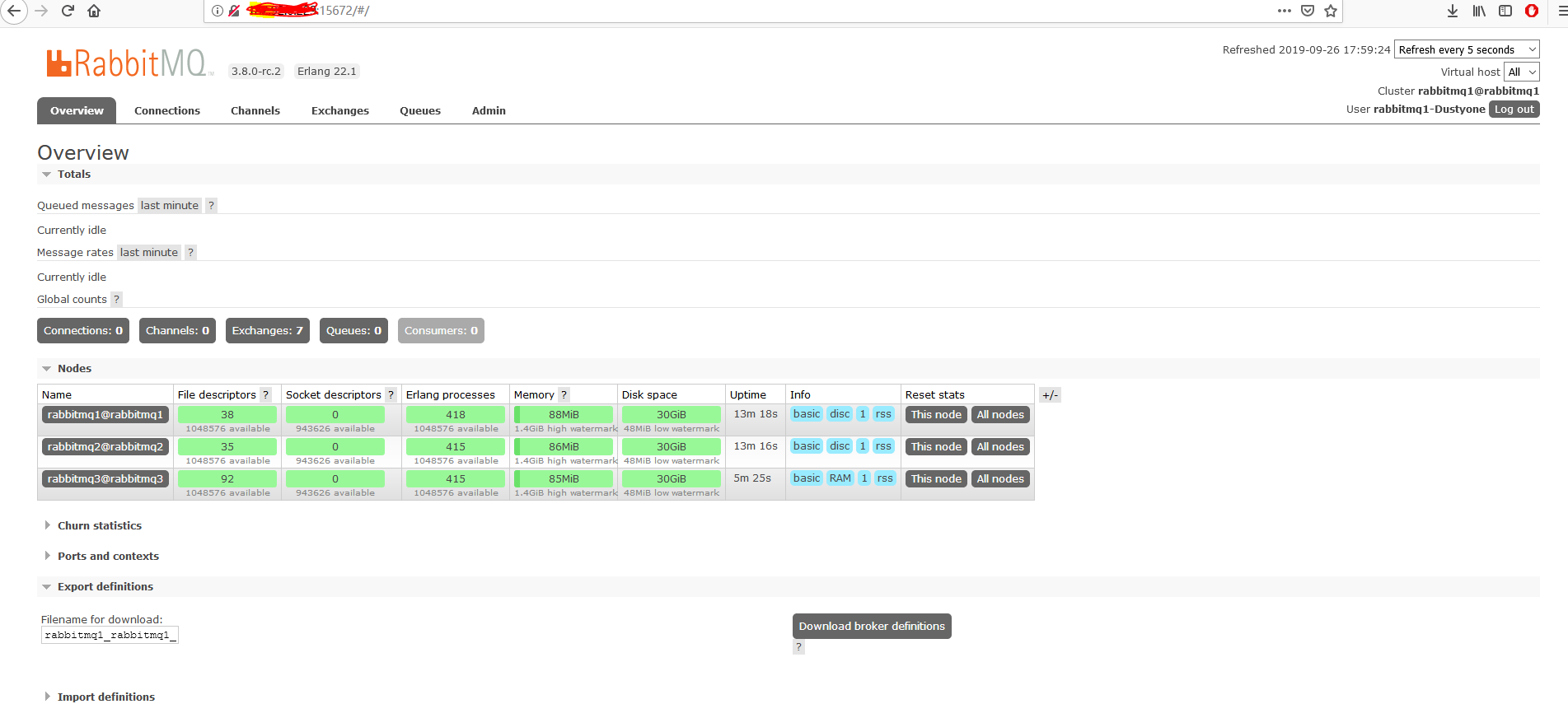

登录：http://你的公网IP:15672 ，使用rabbitmq1-Dustyone/bai5331359登录,登录其他节点，访问相应的端口并使用相应的用户名/密码登录即可

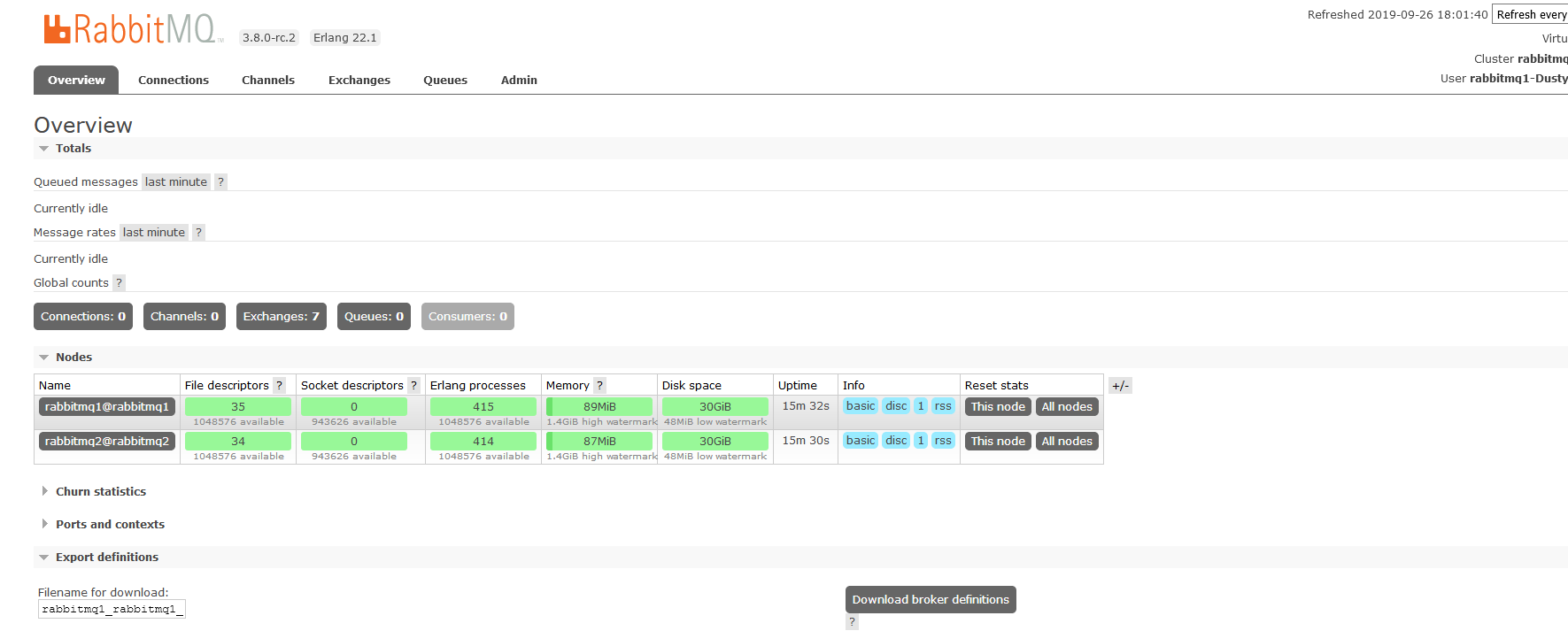

退出集群

1
2
3
4
5
6
1# docker exec rabbitmq3 bash -c \

2"rabbitmqctl stop_app && \

3rabbitmqctl reset && \

4rabbitmqctl start_app"

5

6

• 拉取haproxy镜像

1
2
3
1docker pull haproxy

2

3

• 创建目录/workspace/rabbitmq/haproxy-etc,并在该路径下创建haprox.cfg配置文件

1
2
3
4
5
6
7
8
9
10
1[root@iZ2ze8sm5upgi8z1dcazqeZ haproxy-etc]# pwd

2/workspace/rabbitmq/haproxy-etc

3[root@iZ2ze8sm5upgi8z1dcazqeZ haproxy-etc]# tree

4.

5└── haproxy.cfg

6

70 directories, 1 file

8[root@iZ2ze8sm5upgi8z1dcazqeZ haproxy-etc]#

9

10

haproxy.cfg配置信息如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1#Simple configuration for an HTTP proxy listening on port 80 on all

2# interfaces and forwarding requests to a single backend "servers" with a

3# single server "server1" listening on 127.0.0.1:8000

4

5global

6    daemon

7    maxconn 256

8

9defaults

10    mode http

11    timeout connect 5000ms

12    timeout client 5000ms

13    timeout server 5000ms

14

15listen rabbitmq_cluster

16    bind 0.0.0.0:5677

17    option tcplog

18    mode tcp

19    balance leastconn

20    server  rabbit1 rabbitmq1:5672 check inter 2s rise 2 fall 3

21    server  rabbit2 rabbitmq2:5672 check inter 2s rise 2 fall 3

22    server  rabbit3 rabbitmq3:5672 check inter 2s rise 2 fall 3

23

24listen http_front

25    bind 0.0.0.0:8002

26    stats uri /haproxy?stats

27

28listen rabbitmq_admin

29    bind 0.0.0.0:8001

30    server rabbit1 rabbitmq1:15672

31    server rabbit2 rabbitmq2:15672

32    server rabbit3 rabbitmq3:15672

33

34

• 拉取haproxy镜像

1
2
3
1docker pull haproxy

2

3

• 启动haproxy

1
2
3
4
5
6
7
8
1docker run -d \

2    --name rabbitmq-haproxy \

3    -p 8002:8002 -p 5677:5677 -p 8001:8001 \

4    --net=rabbitmqnet \

5    -v /workspace/rabbitmq/haproxy-etc:/usr/local/etc/haproxy:ro \

6    haproxy:latest

7

8

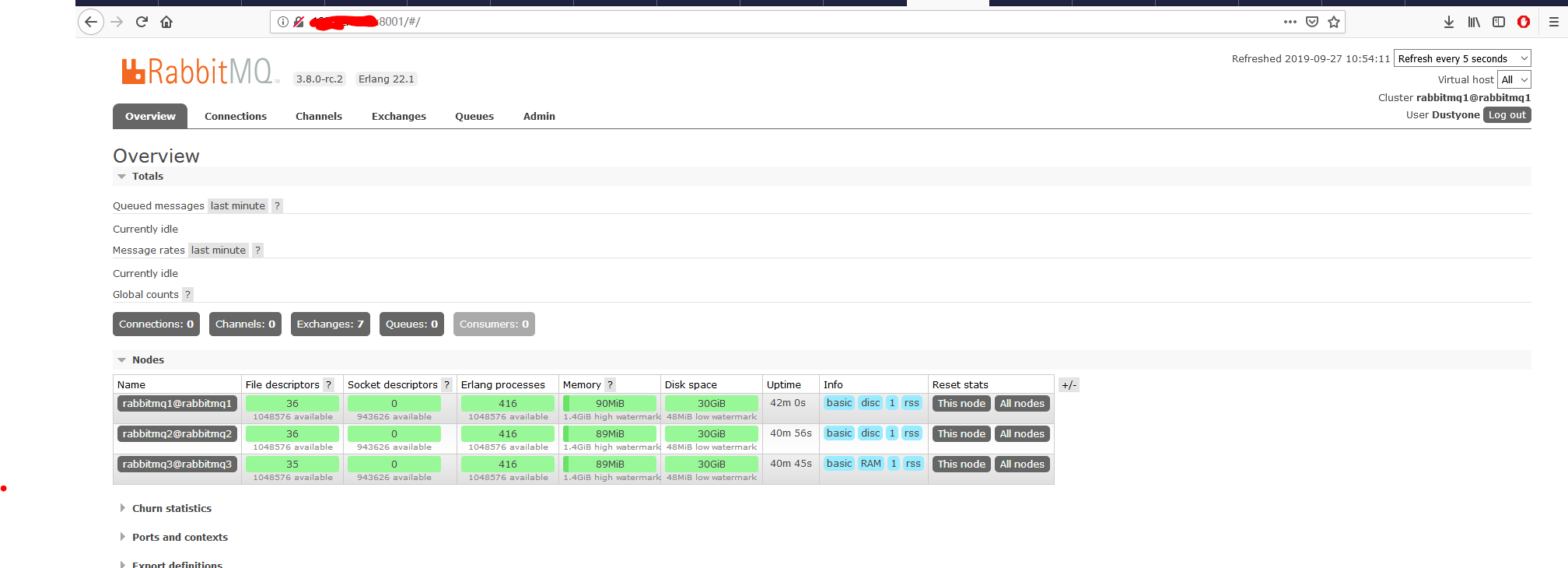

启动haproxy后，可以通过haproxy来访问rabbitmq集群：http://你的公网IP:8001

• 获取haproxy的状态：http://你的公网IP:8002/haproxy?stats
