springMVC+mybatis框架搭建
首先我们先要弄清搭建项目的一般流程，需要注意哪些方面，想要什么样的效果，自己的功能有哪些？
（假设效果：项目目录结构清晰，能够查询到本地数据库中的内容。。）
1. 工程目录结构整理清楚
在src/main/java文件夹中，新建包cn.springmvc.model(存放javabean),
cn.springmvc.dao（存放spring与mybatis连接接口）,
cn.springmvc.service（service接口）,
cn.springmvc.service.impl（service接口的实现），
cn.springmvc.controller（存放控制层controller）
在src/main/resource文件夹中，新建包conf（存放配置文件），
mapper（mybatis的mapper文件）
在src/test/java文件夹中，新建包cn.springmvc.test(存放测试文件)
在WEB-INF文件夹下新建jsp文件夹（存放jsp文件）
这样项目结构基本完成了
2. 引入依赖包
打开maven的pom文件，对本次开发所需使用的架包依次导入（maven项目管理的优势）
查找依赖结构有个不错的网站，http://search.maven.org/ 只要输入包名即可查找引来关系
pom.xml(包依赖)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
2 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
3 <modelVersion>4.0.0</modelVersion>
4 <groupId>eyas.springmvc</groupId>
5 <artifactId>springmvc</artifactId>
6 <packaging>war</packaging>
7 <version>0.0.1-SNAPSHOT</version>
8 <name>springmvc Maven Webapp</name>
9 <url>http://maven.apache.org</url>
10 <properties>
11 <!-- spring版本号 -->
12 <spring.version>3.2.4.RELEASE</spring.version>
13 <!-- mybatis版本号 -->
14 <mybatis.version>3.2.4</mybatis.version>
15 <!-- log4j日志文件管理包版本 -->
16 <slf4j.version>1.6.6</slf4j.version>
17 <log4j.version>1.2.9</log4j.version>
18 </properties>
19 <dependencies>
20 <!-- spring核心包 -->
21 <!-- springframe start -->
22 <dependency>
23 <groupId>org.springframework</groupId>
24 <artifactId>spring-core</artifactId>
25 <version>${spring.version}</version>
26 </dependency>
27
28 <dependency>
29 <groupId>org.springframework</groupId>
30 <artifactId>spring-web</artifactId>
31 <version>${spring.version}</version>
32 </dependency>
33
34 <dependency>
35 <groupId>org.springframework</groupId>
36 <artifactId>spring-oxm</artifactId>
37 <version>${spring.version}</version>
38 </dependency>
39
40 <dependency>
41 <groupId>org.springframework</groupId>
42 <artifactId>spring-tx</artifactId>
43 <version>${spring.version}</version>
44 </dependency>
45
46 <dependency>
47 <groupId>org.springframework</groupId>
48 <artifactId>spring-jdbc</artifactId>
49 <version>${spring.version}</version>
50 </dependency>
51
52 <dependency>
53 <groupId>org.springframework</groupId>
54 <artifactId>spring-webmvc</artifactId>
55 <version>${spring.version}</version>
56 </dependency>
57
58 <dependency>
59 <groupId>org.springframework</groupId>
60 <artifactId>spring-aop</artifactId>
61 <version>${spring.version}</version>
62 </dependency>
63
64 <dependency>
65 <groupId>org.springframework</groupId>
66 <artifactId>spring-context-support</artifactId>
67 <version>${spring.version}</version>
68 </dependency>
69
70 <dependency>
71 <groupId>org.springframework</groupId>
72 <artifactId>spring-aop</artifactId>
73 <version>${spring.version}</version>
74 </dependency>
75
76 <dependency>
77 <groupId>org.springframework</groupId>
78 <artifactId>spring-test</artifactId>
79 <version>${spring.version}</version>
80 </dependency>
81 <!-- springframe end -->
82
83 <!-- mybatis核心包 -->
84 <dependency>
85 <groupId>org.mybatis</groupId>
86 <artifactId>mybatis</artifactId>
87 <version>${mybatis.version}</version>
88 </dependency>
89 <!-- mybatis/spring包 -->
90 <dependency>
91 <groupId>org.mybatis</groupId>
92 <artifactId>mybatis-spring</artifactId>
93 <version>1.2.2</version>
94 </dependency>
95 <!-- mysql驱动包 -->
96 <dependency>
97 <groupId>mysql</groupId>
98 <artifactId>mysql-connector-java</artifactId>
99 <version>5.1.29</version>
100 </dependency>
101 <!-- junit测试包 -->
102 <dependency>
103 <groupId>junit</groupId>
104 <artifactId>junit</artifactId>
105 <version>4.11</version>
106 <scope>test</scope>
107 </dependency>
108 <!-- 阿里巴巴数据源包 -->
109 <dependency>
110 <groupId>com.alibaba</groupId>
111 <artifactId>druid</artifactId>
112 <version>1.0.2</version>
113 </dependency>
114
115 <!-- json数据 -->
116 <dependency>
117 <groupId>org.codehaus.jackson</groupId>
118 <artifactId>jackson-mapper-asl</artifactId>
119 <version>1.9.13</version>
120 </dependency>
121
122 <!-- 日志文件管理包 -->
123 <!-- log start -->
124 <dependency>
125 <groupId>log4j</groupId>
126 <artifactId>log4j</artifactId>
127 <version>${log4j.version}</version>
128 </dependency>
129 <dependency>
130 <groupId>org.slf4j</groupId>
131 <artifactId>slf4j-api</artifactId>
132 <version>${slf4j.version}</version>
133 </dependency>
134 <dependency>
135 <groupId>org.slf4j</groupId>
136 <artifactId>slf4j-log4j12</artifactId>
137 <version>${slf4j.version}</version>
138 </dependency>
139 <!-- log end -->
140 </dependencies>
141 <build>
142 <finalName>springmvc</finalName>
143 </build>
144</project>
145
3. 配置数据库连接属性
conf/ jdbc.properties（jdbc配置文件)
2
3
4
5
2jdbc_url=jdbc:mysql://localhost:3306/mydays?useUnicode=true&characterEncoding=utf-8
3jdbc_username=root
4jdbc_password=root
5
4. 配置spring配置文件
conf/spring.xml(spring配置文件的扫描)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2<beans xmlns="http://www.springframework.org/schema/beans"
3 xmlns:context="http://www.springframework.org/schema/context"
4 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
5 xsi:schemaLocation="http://www.springframework.org/schema/beans
6 http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
7 http://www.springframework.org/schema/context
8 http://www.springframework.org/schema/context/spring-context.xsd">
9
10 <!-- 引入jdbc配置文件 -->
11 <context:property-placeholder location="classpath:conf/jdbc.properties"/>
12
13 <!-- 扫描文件（自动将servicec层注入） -->
14 <context:component-scan base-package="cn.springmvc.service"/>
15</beans>
16
conf/spring-mybatis.xml（spring与mybatis连接属性）
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
2<beans xmlns="http://www.springframework.org/schema/beans"
3 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
4 xmlns:p="http://www.springframework.org/schema/p"
5 xmlns:context="http://www.springframework.org/schema/context"
6 xmlns:aop="http://www.springframework.org/schema/aop"
7 xmlns:tx="http://www.springframework.org/schema/tx"
8 xmlns:util="http://www.springframework.org/schema/util"
9 xsi:schemaLocation="http://www.springframework.org/schema/beans
10 http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
11 http://www.springframework.org/schema/context
12 http://www.springframework.org/schema/context/spring-context-3.2.xsd
13 http://www.springframework.org/schema/tx
14 http://www.springframework.org/schema/tx/spring-tx-3.2.xsd
15 http://www.springframework.org/schema/aop
16 http://www.springframework.org/schema/aop/spring-aop-3.2.xsd
17 http://www.springframework.org/schema/util
18 http://www.springframework.org/schema/util/spring-util-3.2.xsd">
19
20 <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init"
21 destroy-method="close" >
22 <property name="driverClassName">
23 <value>${jdbc_driverClassName}</value>
24 </property>
25 <property name="url">
26 <value>${jdbc_url}</value>
27 </property>
28 <property name="username">
29 <value>${jdbc_username}</value>
30 </property>
31 <property name="password">
32 <value>${jdbc_password}</value>
33 </property>
34 <!-- 连接池最大使用连接数 -->
35 <property name="maxActive">
36 <value>20</value>
37 </property>
38 <!-- 初始化连接大小 -->
39 <property name="initialSize">
40 <value>1</value>
41 </property>
42 <!-- 获取连接最大等待时间 -->
43 <property name="maxWait">
44 <value>60000</value>
45 </property>
46 <!-- 连接池最大空闲 -->
47 <property name="maxIdle">
48 <value>20</value>
49 </property>
50 <!-- 连接池最小空闲 -->
51 <property name="minIdle">
52 <value>3</value>
53 </property>
54 <!-- 自动清除无用连接 -->
55 <property name="removeAbandoned">
56 <value>true</value>
57 </property>
58 <!-- 清除无用连接的等待时间 -->
59 <property name="removeAbandonedTimeout">
60 <value>180</value>
61 </property>
62 <!-- 连接属性 -->
63 <property name="connectionProperties">
64 <value>clientEncoding=UTF-8</value>
65 </property>
66 </bean>
67
68 <!-- mybatis文件配置，扫描所有mapper文件 -->
69 <bean id="sqlSessionFactory"
70 class="org.mybatis.spring.SqlSessionFactoryBean"
71 p:dataSource-ref="dataSource"
72 p:configLocation="classpath:conf/mybatis-config.xml"
73 p:mapperLocations="classpath:mapper/*.xml"/><!-- configLocation为mybatis属性 mapperLocations为所有mapper-->
74
75 <!-- spring与mybatis整合配置，扫描所有dao -->
76 <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"
77 p:basePackage="cn.springmvc.dao"
78 p:sqlSessionFactoryBeanName="sqlSessionFactory"/>
79
80 <!-- 对数据源进行事务管理 -->
81 <bean id="transactionManager"
82 class="org.springframework.jdbc.datasource.DataSourceTransactionManager"
83 p:dataSource-ref="dataSource"/>
84</beans>
85
5. java代码编写（model，dao，service层代码）
cn.springmvc.model/User.java(用户基本信息)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
2
3
4/**
5 * 用户表
6 */
7public class User {
8
9 private int id;
10 private int state;
11 private String nickname;
12 public int getId() {
13 return id;
14 }
15 public void setId(int id) {
16 this.id = id;
17 }
18 public int getState() {
19 return state;
20 }
21 public void setState(int state) {
22 this.state = state;
23 }
24 public String getNickname() {
25 return nickname;
26 }
27 public void setNickname(String nickname) {
28 this.nickname = nickname;
29 }
30}
31
cn.springmvc.dao/UserDAO.java(dao操作接口)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2
3import cn.springmvc.model.User;
4
5
6public interface UserDAO {
7
8 /**
9 * 添加新用户
10 * @param user
11 * @return
12 */
13 public int insertUser(User user);
14
15
16}
17
cn.springmvc.service/UserService.java(service层接口)
2
3
4
5
6
7
8
9
10
2
3import cn.springmvc.model.User;
4
5
6public interface UserService {
7
8 public int insertUser(User user);
9}
10
cn.springmvc.service.impl/UserServiceImpl.java(service层接口实现)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
2
3import org.springframework.beans.factory.annotation.Autowired;
4import org.springframework.stereotype.Service;
5
6import cn.springmvc.dao.UserDAO;
7import cn.springmvc.model.User;
8import cn.springmvc.service.UserService;
9
10
11@Service
12public class UserServiceImpl implements UserService{
13
14 @Autowired
15 private UserDAO userDAO;
16
17 @Override
18 public int insertUser(User user) {
19 // TODO Auto-generated method stub
20 return userDAO.insertUser(user);
21 }
22
23}
24
6. mybatis配置
conf/mybatis-config.xml(mybatis配置的基本文件)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2<!DOCTYPE configuration
3PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
4"http://mybatis.org/dtd/mybatis-3-config.dtd">
5<configuration>
6 <!-- 命名空间 -->
7 <typeAliases>
8 <typeAlias alias="User" type="cn.springmvc.model.User"/>
9 </typeAliases>
10
11 <!-- 映射map -->
12 <mappers>
13 </mappers>
14</configuration>
15
mapper/UserMapper.xml(mybatis的实现)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
2<!DOCTYPE mapper
3 PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
4"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
5<mapper namespace="cn.springmvc.dao.UserDAO">
6
7 <insert id="insertUser" parameterType="User" keyProperty="id">
8 insert into days_user(
9 state,
10 nickname)
11 values
12 (
13 #{state},
14 #{nickname})
15 </insert>
16
17</mapper>
18
这样就完成了基本插入用户的功能！
7. junit测试插入功能
cn.springmvc.test/UserTest.java(用户测试模块)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
2
3import org.junit.Before;
4import org.junit.Test;
5import org.springframework.context.ApplicationContext;
6import org.springframework.context.support.ClassPathXmlApplicationContext;
7
8import cn.springmvc.model.User;
9import cn.springmvc.service.UserService;
10
11
12
13public class UserTest {
14
15private UserService userService;
16
17 @Before
18 public void before(){
19 @SuppressWarnings("resource")
20 ApplicationContext context = new ClassPathXmlApplicationContext(new String[]{"classpath:conf/spring.xml"
21 ,"classpath:conf/spring-mybatis.xml"});
22 userService = (UserService) context.getBean("userServiceImpl");
23 }
24
25 @Test
26 public void addUser(){
27 User user = new User();
28 user.setNickname("你好");
29 user.setState(2);
30 System.out.println(userService.insertUser(user));
31 }
32}
33
测试结果如图：
即完成插入功能！
8. springMVC模块搭建
web.xml（web功能配置）
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
2<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
3 xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
4 xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
5 id="WebApp_ID" version="2.5">
6 <display-name>Archetype Created Web Application</display-name>
7
8 <!-- 读取spring配置文件 -->
9 <context-param>
10 <param-name>contextConfigLocation</param-name>
11 <param-value>classpath:conf/spring.xml;
12 classpath:conf/spring-mybatis.xml
13 </param-value>
14 </context-param>
15 <!-- 设计路径变量值 -->
16 <context-param>
17 <param-name>webAppRootKey</param-name>
18 <param-value>springmvc.root</param-value>
19 </context-param>
20
21
22 <!-- Spring字符集过滤器 -->
23 <filter>
24 <filter-name>SpringEncodingFilter</filter-name>
25 <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
26 <init-param>
27 <param-name>encoding</param-name>
28 <param-value>UTF-8</param-value>
29 </init-param>
30 <init-param>
31 <param-name>forceEncoding</param-name>
32 <param-value>true</param-value>
33 </init-param>
34 </filter>
35 <filter-mapping>
36 <filter-name>SpringEncodingFilter</filter-name>
37 <url-pattern>/*</url-pattern>
38 </filter-mapping>
39
40 <!-- 日志记录 -->
41 <context-param>
42 <!-- 日志配置文件路径 -->
43 <param-name>log4jConfigLocation</param-name>
44 <param-value>classpath:conf/log4j.properties</param-value>
45 </context-param>
46 <context-param>
47 <!-- 日志页面的刷新间隔 -->
48 <param-name>log4jRefreshInterval</param-name>
49 <param-value>6000</param-value>
50 </context-param>
51 <listener>
52 <listener-class>org.springframework.web.util.Log4jConfigListener</listener-class>
53 </listener>
54
55 <listener>
56 <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
57 </listener>
58
59 <!-- springMVC核心配置 -->
60 <servlet>
61 <servlet-name>spring</servlet-name>
62 <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
63 <init-param>
64 <param-name>contextConfigLocation</param-name>
65 <param-value>classpath:conf/spring-mvc.xml</param-value>
66 </init-param>
67 <load-on-startup>2</load-on-startup>
68 </servlet>
69 <servlet-mapping>
70 <servlet-name>spring</servlet-name>
71 <url-pattern>*.do</url-pattern>
72 </servlet-mapping>
73
74 <welcome-file-list>
75 <welcome-file>index.jsp</welcome-file>
76 </welcome-file-list>
77
78 <!-- 错误跳转页面 -->
79 <error-page>
80 <!-- 路径不正确 -->
81 <error-code>404</error-code>
82 <location>/WEB-INF/errorpage/404.jsp</location>
83 </error-page>
84 <error-page>
85 <!-- 没有访问权限，访问被禁止 -->
86 <error-code>405</error-code>
87 <location>/WEB-INF/errorpage/405.jsp</location>
88 </error-page>
89 <error-page>
90 <!-- 内部错误 -->
91 <error-code>500</error-code>
92 <location>/WEB-INF/errorpage/500.jsp</location>
93 </error-page>
94</web-app>
95
conf/spring-mvc.xml(mvc配置文件)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
2<beans xmlns="http://www.springframework.org/schema/beans"
3 xmlns:p="http://www.springframework.org/schema/p"
4 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
5 xmlns:context="http://www.springframework.org/schema/context"
6 xmlns:mvc="http://www.springframework.org/schema/mvc"
7 xsi:schemaLocation="
8 http://www.springframework.org/schema/beans
9 http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
10 http://www.springframework.org/schema/context
11 http://www.springframework.org/schema/context/spring-context-3.2.xsd
12 http://www.springframework.org/schema/mvc
13 http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd">
14
15 <!-- 扫描controller（controller层注入） -->
16 <context:component-scan base-package="cn.springmvc.controller"/>
17
18 <!-- 避免IE在ajax请求时，返回json出现下载 -->
19 <bean id="jacksonMessageConverter" class="org.springframework.http.converter.json.MappingJacksonHttpMessageConverter">
20 <property name="supportedMediaTypes">
21 <list>
22 <value>text/html;charset=UTF-8</value>
23 </list>
24 </property>
25 </bean>
26
27 <!-- 对模型视图添加前后缀 -->
28 <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"
29 p:prefix="/WEB-INF/jsp/" p:suffix=".jsp"/>
30</beans>
31
9. log4j日志记录搭建
conf/log4j.properties(日志记录的配置文件)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
2#log4j.rootLogger = debug , stdout , D , E
3log4j.rootLogger = debug , stdout , D
4
5### output to the console ###
6log4j.appender.stdout = org.apache.log4j.ConsoleAppender
7log4j.appender.stdout.Target = System.out
8log4j.appender.stdout.layout = org.apache.log4j.PatternLayout
9#log4j.appender.stdout.layout.ConversionPattern = %d{ABSOLUTE} %5p %c{ 1 }:%L - %m%n
10log4j.appender.stdout.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss} [%c]-[%p] %m%n
11
12### Output to the log file ###
13log4j.appender.D = org.apache.log4j.DailyRollingFileAppender
14log4j.appender.D.File = ${springmvc.root}/WEB-INF/logs/log.log
15log4j.appender.D.Append = true
16log4j.appender.D.Threshold = DEBUG
17log4j.appender.D.layout = org.apache.log4j.PatternLayout
18log4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss} [ %t:%r ] - [ %p ] %m%n
19
20### Save exception information to separate file ###
21log4j.appender.D = org.apache.log4j.DailyRollingFileAppender
22log4j.appender.D.File = ${springmvc.root}/WEB-INF/logs/error.log
23log4j.appender.D.Append = true
24log4j.appender.D.Threshold = ERROR
25log4j.appender.D.layout = org.apache.log4j.PatternLayout
26log4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss} [ %t:%r ] - [ %p ] %m%n
27
10. 测试运行
WEB-INF/jsp/index.jsp(测试文件)
2
3
4
5
6
7
8
9
10
11
12
13
2 pageEncoding="UTF-8"%>
3<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
4<html>
5<head>
6<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
7<title>Insert title here</title>
8</head>
9<body>
10<h1>欢迎你！！！</h1>
11</body>
12</html>
13
cn.springmvc.controller/UserComtroller.java(controller层控制)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
3import org.springframework.stereotype.Controller;
4import org.springframework.web.bind.annotation.RequestMapping;
5
6@Controller
7@RequestMapping("/")
8public class UserController {
9
10 @RequestMapping("index")
11 public String index(){
12 return "index";
13 }
14
15}
16
将该项目部署到本地tomcat6中
右击该项目选择Run as，选择Run on Server

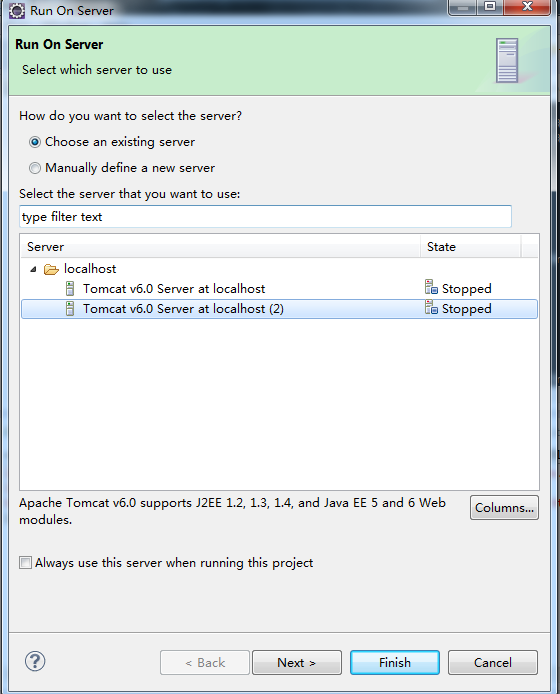

选择自己建立的tomcat6运行如图：

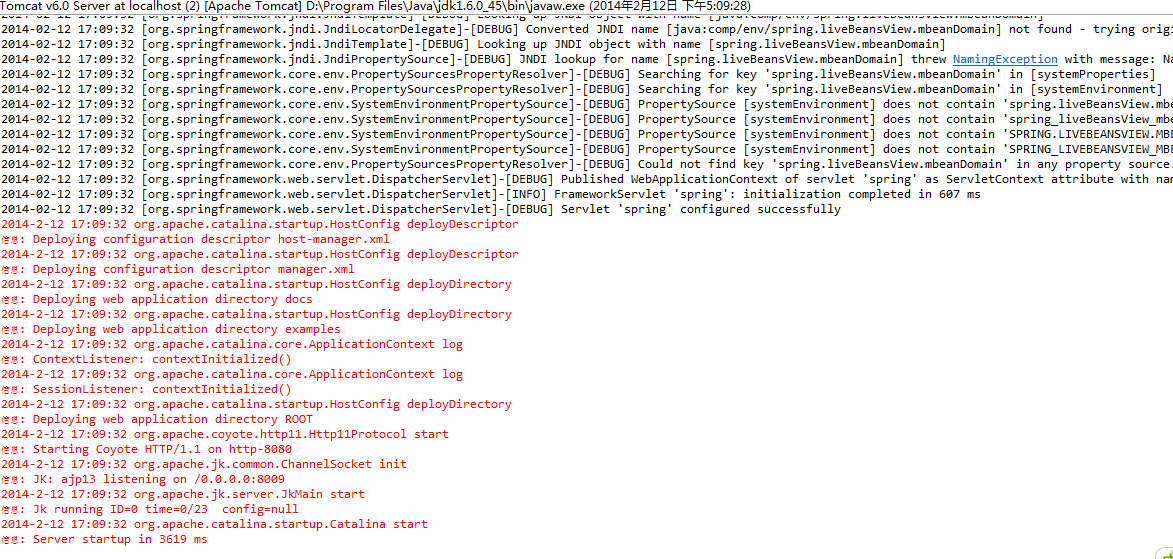

控制台打印出日志如图（启动成功）：
在浏览器中输入：http://localhost:8080/springmvc/index.do 进行测试
效果如图（返回成功）：
