分布式日志收集框架Flume

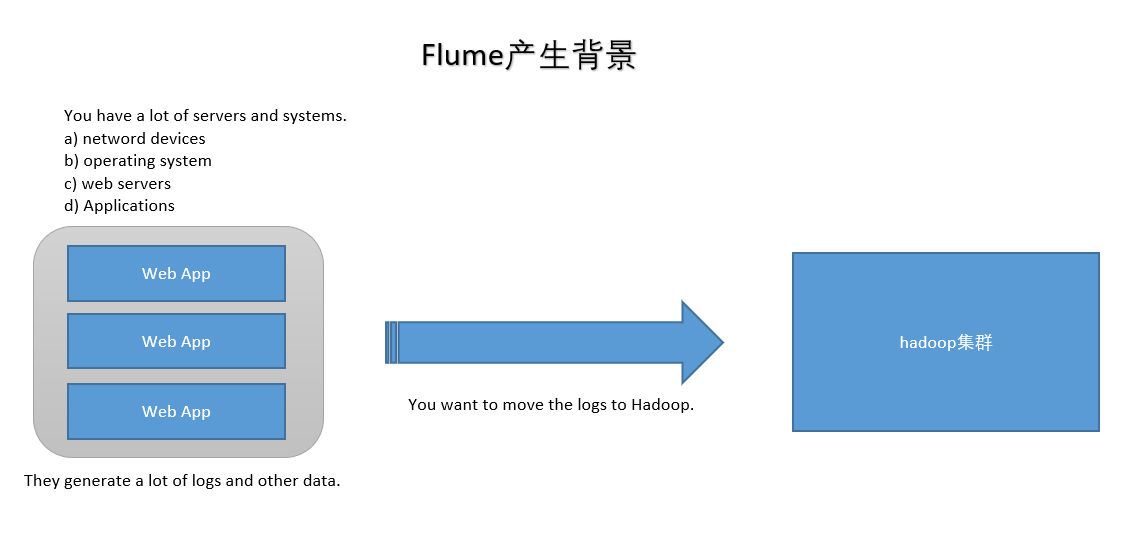

1.业务现状分析

• WebServer/ApplicationServer分散在各个机器上

• 想在大数据平台Hadoop进行统计分析

• 日志如何收集到Hadoop平台上

• 解决方案及存在的问题

• 如何解决我们的数据从其他的server上移动到Hadoop之上？

1. shell: cp –> Hadoop集群的机器上，hdfs dfs -put ….（有很多问题不好解决，容错、负载均衡、时效性、压缩）
   1. Flume，从 A –> B 移动日志

2.Flume概述

• Flume官网：http://flume.apache.org/

Flume is a distributed, reliable, and available service for efficiently collecting, aggregating, and moving large amounts of log data.
Flume是由Apache基金会提供的一个分布式、高可靠、高可用的服务，用于分布式的海量日志的高效收集、聚合、移动系统。

• Flume设计目标

1. 可靠性：高科要

   1. 扩展性：模块可扩展
   2. 管理性：agent管理

2. 界同类产品对比

3. Flume: Cloudera/Apache, Java语言开发。

   1. Logstash: ELK(ElasticsSearch, Logstash, Kibana)
   2. Scribe: Facebook, 使用C/C++开发, 负载均衡不是很好, 已经不维护了。
   3. Chukwa: Yahoo/Apache, 使用Java语言开发, 负载均衡不是很好, 已经不维护了。
   4. Fluentd: 和Flume类似, Ruby开发。

4. Flume发展史

5. Cloudera公司提出0.9.2，叫Flume-OG

   1. 2011年Flume-728编号，重要里程碑(Flume-NG)，贡献给Apache社区
   2. 2012年7月 1.0版本
   3. 2015年5月 1.6版本
   4. ~ 1.7版本

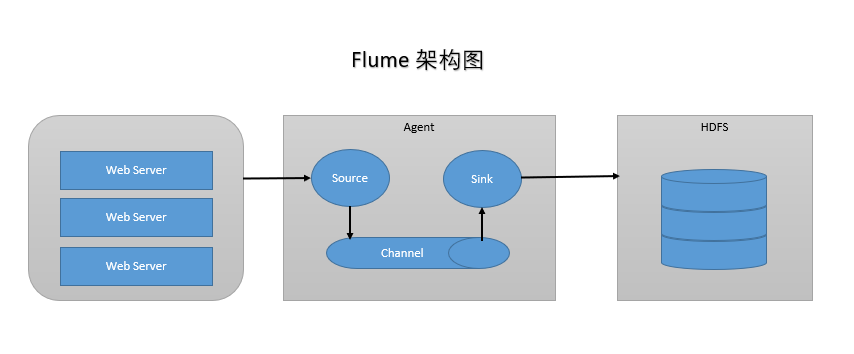

3.Flume架构及核心组件

Flume有三大组件

• Source: 收集，指定数据源从哪里来（Avro, Thrift, Spooling, Kafka, Exec）
• Channel: 聚集，把数据先存在（Memory, File, Kafka等用的比较多）
• Sink: 把数据写到某个地方去（HDFS, Hive, Logger, Avro, Thrift, File, ES, HBase, Kafka等）

4.Flume环境部署

• 前置条件

• Java Runtime Environment – Java 1.8 or later（安装Java）

  • Memory – Sufficient memory for configurations used by sources, channels or sinks（足够内存）
  • Disk Space – Sufficient disk space for configurations used by channels or sinks（足够空间）
  • Directory Permissions – Read/Write permissions for directories used by agent（读写权限）

• 1.安装JDK（下载，解压，安装，配置环境变量）

• 2.安装Flume（下载，加压，安装，配置环境变量，检测：flume-ng version）

5.Flume实战

• 需求1：从指定网络端口采集数据输出到控制台

• flume-conf.properties

• A) 配置Source
  * B) 配置Channel
  * C) 配置Sink
  * D) 把以上三个组件串起来

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1# example.conf: A single-node Flume configuration

2

3# a1: agent名称

4# r1：source的名称

5# k1：sink的名称

6# c1：channel的名称

7

8# Name the components on this agent

9a1.sources = r1

10a1.sinks = k1

11a1.channels = c1

12

13# Describe/configure the source

14a1.sources.r1.type = netcat

15a1.sources.r1.bind = localhost

16a1.sources.r1.port = 44444

17

18# Describe the sink

19a1.sinks.k1.type = logger

20

21# Use a channel which buffers events in memory

22a1.channels.c1.type = memory

23a1.channels.c1.capacity = 1000

24a1.channels.c1.transactionCapacity = 100

25

26# Bind the source and sink to the channel

27a1.sources.r1.channels = c1

28a1.sinks.k1.channel = c1

29

• 启动Agent

1
2
3
4
5
6
7
8
9
10
11
12
1flume-ng agent \

2--name $agent_name \

3--conf conf \

4--conf-file conf/flume-conf.properties \

5-Dflume.root.logger=INFO,console

6

7flume-ng agent \

8--name a1 \

9--conf $FLUME_HOME/conf \

10--conf-file $FLUME_HOME/conf/example.conf \

11-Dflume.root.logger=INFO,console

12

• 需求2：监控一个文件实时采集新增的数据输出到控制台

• 1.Agent选型：exec source + memory channel + logger sink

  • 2.配置文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1# exec-memory-logger.conf: A single-node Flume configuration

2

3# a1: agent名称

4# r1：source的名称

5# k1：sink的名称

6# c1：channel的名称

7

8# Name the components on this agent

9a1.sources = r1

10a1.sinks = k1

11a1.channels = c1

12

13# Describe/configure the source

14a1.sources.r1.type = exec

15a1.sources.r1.command = tail -F /home/k.o/data/data.log

16a1.sources.r1.shell = /bin/sh -c

17

18# Describe the sink

19a1.sinks.k1.type = logger

20

21# Use a channel which buffers events in memory

22a1.channels.c1.type = memory

23a1.channels.c1.capacity = 1000

24a1.channels.c1.transactionCapacity = 100

25

26# Bind the source and sink to the channel

27a1.sources.r1.channels = c1

28a1.sinks.k1.channel = c1

29

• 启动Agent

1
2
3
4
5
6
7
8
9
10
11
12
1flume-ng agent \

2--name $agent_name \

3--conf conf \

4--conf-file conf/flume-conf.properties \

5-Dflume.root.logger=INFO,console

6

7flume-ng agent \

8--name a1 \

9--conf $FLUME_HOME/conf \

10--conf-file $FLUME_HOME/conf/exec-memory-logger.conf \

11-Dflume.root.logger=INFO,console

12

• 需求3：将A服务器上的日志实时采集到B服务器

• 技术选型：

1.exec source + memory channel + avro sink
2.arro source + memory channel + logger sink

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1# exec-memory-avro.conf: A single-node Flume configuration

2

3# exec-memory-avro: agent名称

4# exec-source：source的名称

5# avro-sink：sink的名称

6# memory-channel：channel的名称

7

8# Name the components on this agent

9exec-memory-avro.sources = exec-source

10exec-memory-avro.sinks = avro-sink

11exec-memory-avro.channels = memory-channel

12

13# Describe/configure the source

14exec-memory-avro.sources.exec-source.type = exec

15exec-memory-avro.sources.exec-source.command = tail -F /home/k.o/data/data.log

16exec-memory-avro.sources.exec-source.shell = /bin/sh -c

17

18# Describe the sink

19exec-memory-avro.sinks.avro-sink.type = avro

20exec-memory-avro.sinks.avro-sink.hostname = localhost

21exec-memory-avro.sinks.avro-sink.port = 44444

22

23# Use a channel which buffers events in memory

24exec-memory-avro.channels.memory-channel.type = memory

25exec-memory-avro.channels.memory-channel.capacity = 1000

26exec-memory-avro.channels.memory-channel.transactionCapacity = 100

27

28# Bind the source and sink to the channel

29exec-memory-avro.sources.exec-source.channels = memory-channel

30exec-memory-avro.sinks.avro-sink.channel = memory-channel

31

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1# avro-memory-logger.conf: A single-node Flume configuration

2

3# avro-memory-logger: agent名称

4# exec-source：source的名称

5# logger-sink：sink的名称

6# memory-channel：channel的名称

7

8# Name the components on this agent

9avro-memory-logger.sources = avro-source

10avro-memory-logger.sinks = logger-sink

11avro-memory-logger.channels = memory-channel

12

13# Describe/configure the source

14avro-memory-logger.sources.avro-source.type = avro

15avro-memory-logger.sources.avro-source.bind = localhost

16avro-memory-logger.sources.avro-source.port = 44444

17

18# Describe the sink

19avro-memory-logger.sinks.logger-sink.type = logger

20

21# Use a channel which buffers events in memory

22avro-memory-logger.channels.memory-channel.type = memory

23avro-memory-logger.channels.memory-channel.capacity = 1000

24avro-memory-logger.channels.memory-channel.transactionCapacity = 100

25

26# Bind the source and sink to the channel

27avro-memory-logger.sources.avro-source.channels = memory-channel

28avro-memory-logger.sinks.logger-sink.channel = memory-channel

29

• 启动Agent

1
2
3
4
5
6
7
8
9
10
11
12
13
14
1# 先启动 avro-memory-logger

2flume-ng agent \

3--name avro-memory-logger \

4--conf $FLUME_HOME/conf \

5--conf-file $FLUME_HOME/conf/avro-memory-logger.conf \

6-Dflume.root.logger=INFO,console

7

8# 再启动 exec-memory-avro

9flume-ng agent \

10--name exec-memory-avro \

11--conf $FLUME_HOME/conf \

12--conf-file $FLUME_HOME/conf/exec-memory-avro.conf \

13-Dflume.root.logger=INFO,console

14

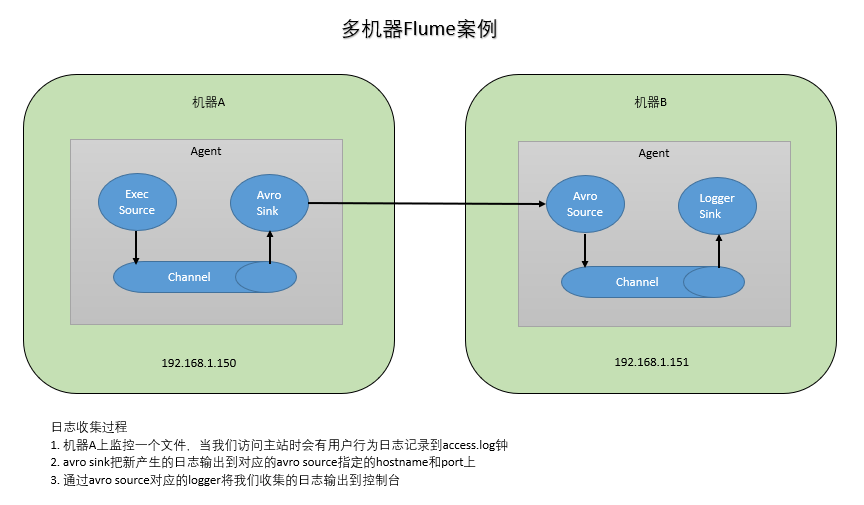

• 日志收集过程

1. 机器A上监控一个文件，当我们访问主站时会有用户行为日志记录到access.log钟

   1. avro sink把新产生的日志输出到对应的avro source指定的hostname和port上

   2. 通过avro source对应的logger将我们收集的日志输出到控制台
